2018 New developed product 16ch security cctv system bullet HD 1080p ip camera p2p free onvif ip66 widely used outdoor

FOB Reference Price:Get Latest Price
$328.00 - $336.00 / Pieces | 1 Piece/Pieces (Min. Order)
Type:
IP Camera
Style:
Dome Camera
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 100 Pieces)

More

Graphic customization (Min. Order: 100 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Oyesee
Model Number:
OK265+D20-F16
Sensor:
CMOS, SONY IMX323
Special Features:
Waterproof/weatherproof
Technology:
Infrared
Resolution:
1920*1080
DSP:
HI3516EV100
Certificate:
CE/FCC/ROHS/ISO9001
Waterproof:
IP66
Lens:
3.6mm fixed lens
camera type:
Network
Supply Ability
Supply Ability:
9999 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Size: 106X72(H)mm
Weight: 0.6kg/pcs
Package: 60pcs/carton (size: 59cmX38.5cmX40cm)
Port
Guangzhou/shenzhen
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 7 To be negotiated
Product Description

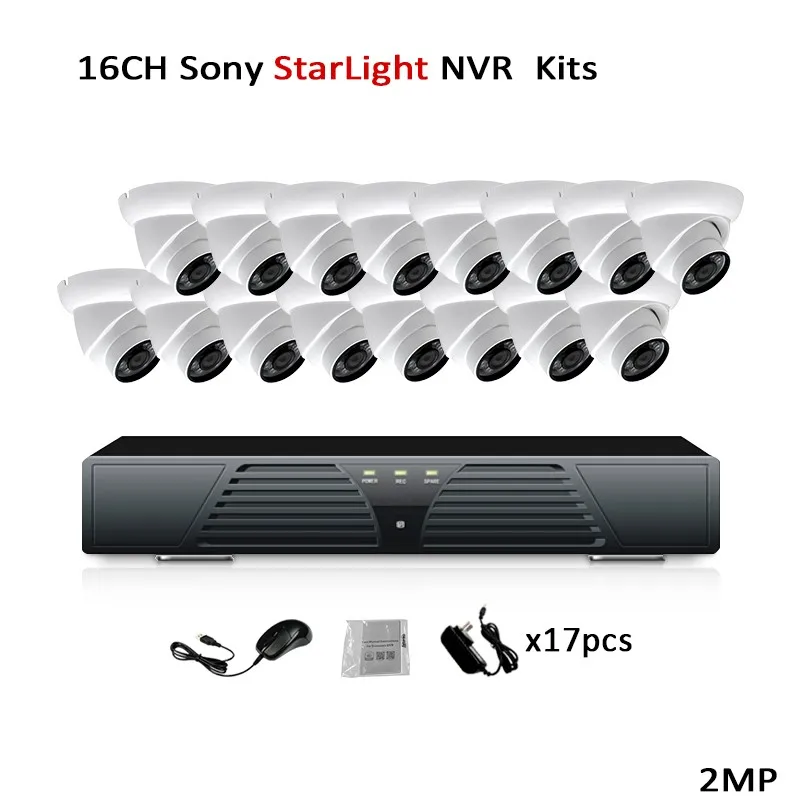

 2018 New developed product 16ch security cctv system bullet HD 1080p ip camera p2p free onvif ip66 widely used outdoor

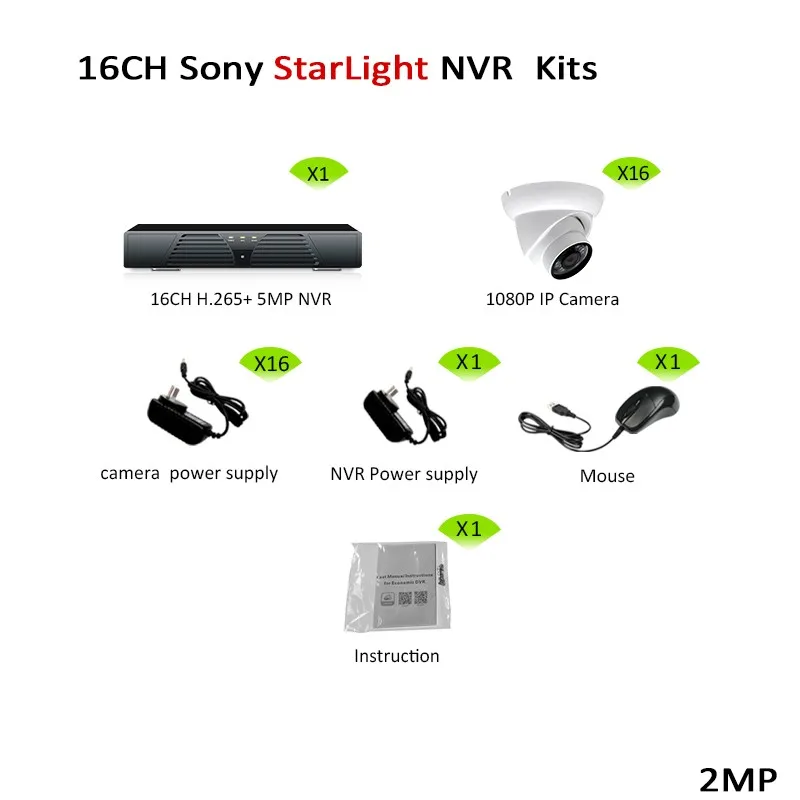

★1pc 16CH H.265+ 5MP NVR Recording: 4CH*5MP@Max)

★8pcs Plastic&Metal Housing 20M IP Cameras

★1pc 12v2A power supply


 ★16pc 12v1A power supply


 ★1pc English User Manual

★1pc Mouse


Advantages of the camera ip

1.1080P HD Low illumination resolution, clear and fine images;

2.Support 2D/3D noise reduction, digital wide dynamic;

3. Compatible with Hikvision,Dahua, XM Private Protocol

4.Professional anti-lightning, conform to GB/T17626.5 and IEC61000-4-5;Support ONVIF ,access third party;

5.Software customization&Optional Function: POE, Audio in&out

6.Advanced H.265+/H.265x video compression, Super low rate, high definition quality of image

7.Provide web,CMS,center platform management software MYEYE,provide SDK development;

8.Support cloud technology, easy to achieve network penetration, for in-line and alarm information pushed.


Technical parameter
Model
OK265+D20-F16
DSP
Hi3516EV100
Sensor
2.0M 1/2.9" IMX323 low illumination CMOS sensor
Day/Night
ICR
Min.Illumination
Low LUX: 0.01LUX @F1.2 (Color) /0.001LUX @F1.2 (B&W)
Lens
3.6mm fixed lens
IR LED
Φ8*6pcs
IR Distance
20m
Noise reduction
Support 2D/3D
Wide dynamic
Support digital
Electronic Shutter
1/50(60) s~ 1/10000s
Audio (optional)
Audio compression
G.711,support bidirectional talk,audio&video synchronization
Audio interface
1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input
1ch output,impedance:16Ω,30mw,support microphone
Alarm IO (optional)
Alarm I/O
1/0 (support alarm input and video link to background)
VIDEO
Compression
H.265+/H.265X /H.264
Image output
Main stream: 1920*1080@20fps,1280*720@25fps;
Sub-stream: 704*576@25fps;
Frame Rate
1--25FPS ( Adjustable)
Bit Rate
100Kpbs~8Mpbs(Adjustable)
NETWORK
Protocol
RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc.
ONVIF
Support
Other function
Support WEB,OSD,live video transmission, motion detect and IO alarm, front-end storage/playback/download, and center
reminder and image linkage, support JPEG capture; united remote client monitoring software, MYEYE,perfect SDK;
PC Client & Browser
CMS/VMS, IE
Mobile Phone
iPhone,iPad,Android Mobile('XMeye' app)
INTERFACE
Video Output
RJ45
LAN
1 RJ45 10/100 Ethernet port
GENERAL
Working Temperature
-10 C ~ + 50 C
Working Humidity
0% ~ 90%
Power Supply
DC12V/POE (optional), 2.0A
Packing& Shipping
Certifications
Production flow
Application
Our Service
Our Company
OYESEE SECURITY LIMITED

 Established in 2014, is a high-tech enterprise specializing in the R&D, manufacturing and sales of various surveillance systems,Our main products includeHD IP camera, HD analog camera, Smart camera, hybrid camera, high speed camera, digital video recorder, network video recorder and so on, which are largely used in industries like financial institutions, public security, telecommunications, traffic transportation, judicature institutions, education, electricity, water conservancy and etc.

OYESEE SECURITY LIMITED

Located in Guangzhou, China, occupies an area of approximately 6000 square meters with about 300 sophisticated workers. With three brands, we rapidly developed with strategy of scale, diversification and internationalization at performance rate of 50% in last years. We have two R&D team, professional technicians overpass 50% of the whole. Every year we invest at least 10% of our sales income to research, development and innovation, which enables OYESEE to get kinds of independent intellectual property rights, stay in the leading place in the industry and guarantee excellent performance of our products.

OYESEE SECURITY LIMITED

Was rated as "High-tech Enterprises", "China Security 100", "Safe City Construction Recommended Brand", "Member of China Security and Protection Industry Unit", and have built a long-term strategic partnership with GDPSPTA, Alibaba, Global Sources, Made in China, China public security Magazine. Besides, our products have successfully passed ISO9001:2000,CE, FCC, RoHS etc., which well assure a very stable and long-term cooperation with each customer.

OYESEE SECURITY LIMITED

In passed years, OYESEE products won great reputation among customers worldwide by meeting their needs, promoting new products at our best service and strong technology, especially in European countries such as Russia, Romania, Poland, Italy and etc. Replying on reasonable price, good quality, short lead-time and excellent service, over 90% customers re-buy from us after trial orders. And it is our honor defective rate of our products can be less than 0.1%.


OYESEE will keep providing good quality products and services with reasonable prices and short lead-time for customers around the world. We are sincerely seeking for a good business cooperation with you in a win-win way in this CCTV field. Let's start our cooperative partnership now!

FAQ

Q1.What kind of service can you provide?

A:1.Customized Order

2.Surveillance Solution

3.Home Security Solution

4.Hardware and software OEM/ODM service


Q2.How can I check the product quality?

A:1.We have online demo,please contact us,we will show you during our working time

2.You can buy a sample for quality test,sample time 3-5 days after payment confirmed

3.We have online store,we can sell single product to you,Online payment supported

4.We will attend some show at your local place at some time,please contact us for more details.


Q3.What is product warranty?

A: 2 years for cameras(LED for 1 year only)

1 year for recorders

1 year extended with OYESEE logo


Q4: What is the product certification?

A:Basically CE ROHS FCC for our products,ISO 9001 for our factory

Besides certification above,we are willing to provide samples for local testing to get the certification based on local law.


Q5:What if there is defective product?

A:Principle :"To decrease loss for both sides"

1.Remote Support first

2.if remote support can not work,

2-1.For small QTY, we will deduct the cost in the next order

2-2.For large QTY, we will accept return of items

2-3.If item return,to save the cost of shipping,we advise sending back parts that defective.

3.We are cooperative to help solving the problem even it is not our fault.

4.More details,please contact us


Q6: Time for production and delivery?

A:1.Sample 3-7 working days

2.Mass production 7-15 working days

3.Delivery time:Via Express delivery ,3-7 working days


Q7:if I want to order,what information should I provide?

A: information for invoice,

1.enterprise name or individual name

2.address with zip code

3.phone number

4.tax number needed specially for some areas
