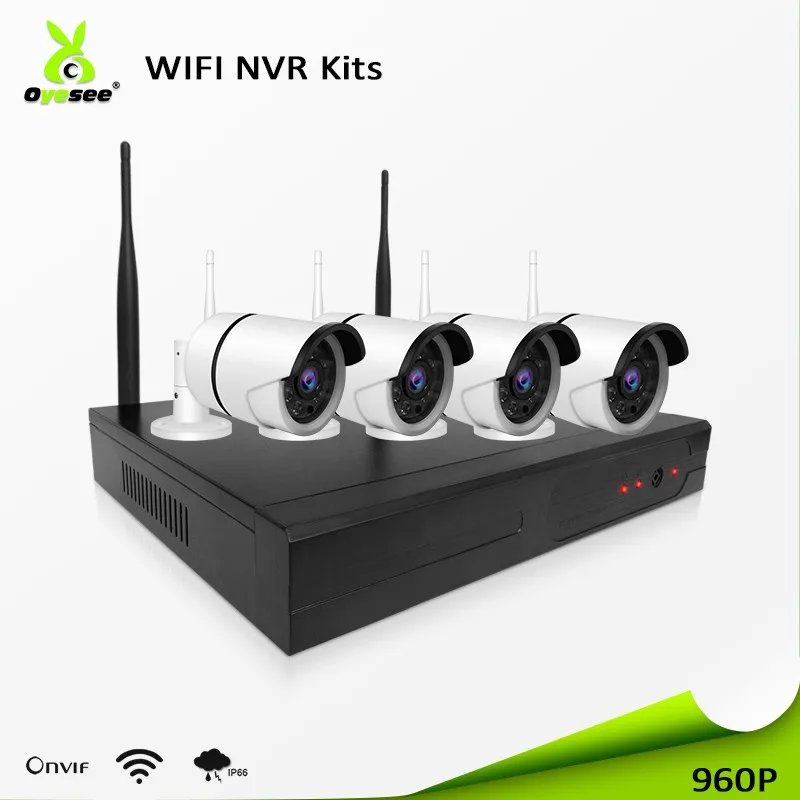

2018 Top-rated HD 960P ip wifi bullet camera 4ch nvr kit security cctv system p2p ip66 onvif power sully and easy installation

FOB Reference Price:Get Latest Price
$73.00 - $78.00 / Sets | 10 Set/Sets (Min. Order)
Type:
wifi IP camera wifi NVR
Style:
BULLET CAMERA
Lead Time:
Quantity(Sets) 1 - 100 >100
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 50 Sets)
Customized packaging (Min. Order: 200 Sets)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
oyesee
Model Number:
OYST04-IP130AB30E
Warranty:
2 Years
Camera Resolution:
1280*960
Camera Sensor:
CMOS
Certificate:
CE/FCC/ROHS/ISO9001
Plug and Play:
support
Lens:
4-6mm
camera type:
Network
Video Compression:
H.264
Wireless/Wired:
support
Supply Ability
Supply Ability:
9999 Set/Sets per Month
Packaging & Delivery
Packaging Details
Neutral standard packing
Port
Guangzhou/shenzhen
Lead Time :
Quantity(Sets) 1 - 100 >100
Est. Time(days) 7 To be negotiated
Product Description

2018 Top-rated HD 960P ip wifi bullet camera 4ch nvr kit security cctv system p2p ip66 onvif power sully and easy installation


※ 4 pcs wifi ip camera


※ 1pcs Network Cable

※ 1pcs 12V 2A

※ 4pcs 12V 1A power supply

※ 1pc English User Manual

※ 1pc Mouse


Main Features:
1.Wi-Fi NVR kit installation is so easy, no need more cabling and Wi-Fi router setup settings, plug in and play, power on and images out.

2.Dual antenna Wi-Fi router built-in, stable and powerful Wi-Fi signal. Wi-Fi transmit range cover up to 200 meters in open side.

3.With encrypted video signal not only on IP camera but also on NVR, the recorded video data, more safety.

4.IP 66 waterproof metal housing, suitable for indoor and outdoor use, all-weather environment applications.

5.Built-in 6pcs Array IR leds, automatic switch IR cut filter, enable ultra-clear night image quality.

6.Support motion detection and android/iOS mobile, easy to get camera images even remotely miles away.


Technical parameter
Model
OYST04-IP130AB30E
NVR Specification
Video input
Network Video
4CH
AUdio Bitrate
64Kbps
Video output
HDMI input
1ch,resolution:1024x768,1366x768,
1440x900,1920x1080p
VGA output
1ch,resolution:1024x768,1366x768,
1440x900,1920x1080p
Video encode Specification
Video Resolution
960P
synch-playback
4CH
Video Control
Video/Capture mode
Manual/Time/Motion/Alarm
Playback mode
Real time Routine Event
Backup
USB backup
Hard Disk
Type
1*SATA interface
Max Capacity
4 TB at most for each
External Interface
Network Interface
one adaptable RJ45 10M/100M, one 2.4Ghz WIFI interface
USB Interface
USB 2.0
Network Control
Protocol
UPnP (play& plug)/SMTP (email service)/ PPPoE (dial-up)
DHCP (Automatically obtain an IP address)



Others
Power Supply
DC12V2A
Power Consumption
≤5W(Without HDD)
Operate Temperature
-10℃~+55℃
Working Humidity (%) RH
10%~90%
IP Camera  Specification
Sensor
1/3" Progressive CMSO Sensor











Techncial
Signal System
PAL/NTSC
Resolution
1280 x 960
Minimum illumination
Color: 0.1 Lux;  B/W: 0.01 Lux
Shutter
1/25s to 1/25,000s
Lens
4-6mm
OSD
Date Time & Title
White Balance
Auto
Day & Night
Auto / Color / BW
3D-DNR
Auto
Mirror/Flip
On / Off
Frame Specification
Three Streaming at the Same Time:
H.264 1280x720@15fps or below
H.264 640x480@30fps or below
S/N
> 39.1 db.
Interface
RJ45 / WIFI 802.11b/g/n





General
Anti-thunder Level
Standard IEC61000-4-5
Working Temperature/Humidity
-10℃ to +50℃ / 30% to 80% RH
Working Temperature/Humidity
-20℃ to +60℃ / 20% to 90% RH
Power Input
DC12V1A
Power consumption
≤6W
Level of Protection
IP66
Application
Packing& Shipping
Certifications
Production flow
Our Company &Service
OYESEE SECURITY LIMITED

 Established in 2014, is a high-tech enterprise specializing in the R&D, manufacturing and sales of various surveillance systems,Our main products includeHD IP camera, HD analog camera, Smart camera, hybrid camera, high speed camera, digital video recorder, network video recorder and so on, which are largely used in industries like financial institutions, public security, telecommunications, traffic transportation, judicature institutions, education, electricity, water conservancy and etc.

OYESEE SECURITY LIMITED

Located in Guangzhou, China, occupies an area of approximately 6000 square meters with about 300 sophisticated workers. With three brands, we rapidly developed with strategy of scale, diversification and internationalization at performance rate of 50% in last years. We have two R&D team, professional technicians overpass 50% of the whole. Every year we invest at least 10% of our sales income to research, development and innovation, which enables OYESEE to get kinds of independent intellectual property rights, stay in the leading place in the industry and guarantee excellent performance of our products.

OYESEE SECURITY LIMITED

Was rated as "High-tech Enterprises", "China Security 100", "Safe City Construction Recommended Brand", "Member of China Security and Protection Industry Unit", and have built a long-term strategic partnership with GDPSPTA, Alibaba, Global Sources, Made in China, China public security Magazine. Besides, our products have successfully passed ISO9001:2000,CE, FCC, RoHS etc., which well assure a very stable and long-term cooperation with each customer.

OYESEE SECURITY LIMITED

In passed years, OYESEE products won great reputation among customers worldwide by meeting their needs, promoting new products at our best service and strong technology, especially in European countries such as Russia, Romania, Poland, Italy and etc. Replying on reasonable price, good quality, short lead-time and excellent service, over 90% customers re-buy from us after trial orders. And it is our honor defective rate of our products can be less than 0.1%.


OYESEE will keep providing good quality products and services with reasonable prices and short lead-time for customers around the world. We are sincerely seeking for a good business cooperation with you in a win-win way in this CCTV field. Let's start our cooperative partnership now!

FAQ

Q1.What kind of service can you provide?

A:1.Customized Order

2.Surveillance Solution

3.Home Security Solution

4.Hardware and software OEM/ODM service


Q2.How can I check the product quality?

A:1.We have online demo,please contact us,we will show you during our working time

2.You can buy a sample for quality test,sample time 3-5 days after payment confirmed

3.We have online store,we can sell single product to you,Online payment supported

4.We will attend some show at your local place at some time,please contact us for more details.


Q3.What is product warranty?

A: 2 years for cameras(LED for 1 year only)

1 year for recorders

1 year extended with OYESEE logo


Q4: What is the product certification?

A:Basically CE ROHS FCC for our products,ISO 9001 for our factory

Besides certification above,we are willing to provide samples for local testing to get the certification based on local law.


Q5:What if there is defective product?

A:Principle :"To decrease loss for both sides"

1.Remote Support first

2.if remote support can not work,

2-1.For small QTY, we will deduct the cost in the next order

2-2.For large QTY, we will accept return of items

2-3.If item return,to save the cost of shipping,we advise sending back parts that defective.

3.We are cooperative to help solving the problem even it is not our fault.

4.More details,please contact us


Q6: Time for production and delivery?

A:1.Sample 3-7 working days

2.Mass production 7-15 working days

3.Delivery time:Via Express delivery ,3-7 working days


Q7:if I want to order,what information should I provide?

A: information for invoice,

1.enterprise name or individual name

2.address with zip code

3.phone number

4.tax number needed specially for some areas
