2018 Competitive price 4MP AHD 16 channel dvr cms download 2HDD p2p CVI XVI IP Analog 6 in 1 xmeye xvr for security cctv camera

FOB Reference Price:Get Latest Price
US $100-109 / Pieces | 10 Piece/Pieces (Min. Order)
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 100 Pieces)

More

Graphic customization (Min. Order: 100 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
OYESEE
Model Number:
OYSX-T16MDA
Resolution:
4MP
Main processor:
Hi3521A
Video Compression:
H.264
Certificate:
CE/FCC/ROHS/ISO9001
Audio in out:
support
HDD:
2*SATA ports (Max 8TB/per)
AHD DVR::
16CH
ONVIF:
support
Video Standard:
PAL/NTSC
Warranty:
2 Years
Supply Ability
Supply Ability:
3999 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Packing: Standard
Weight: 2kg/pcs
Port
Guangzhou/shenzhen
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(day) 7 To be negotiated
Product Description

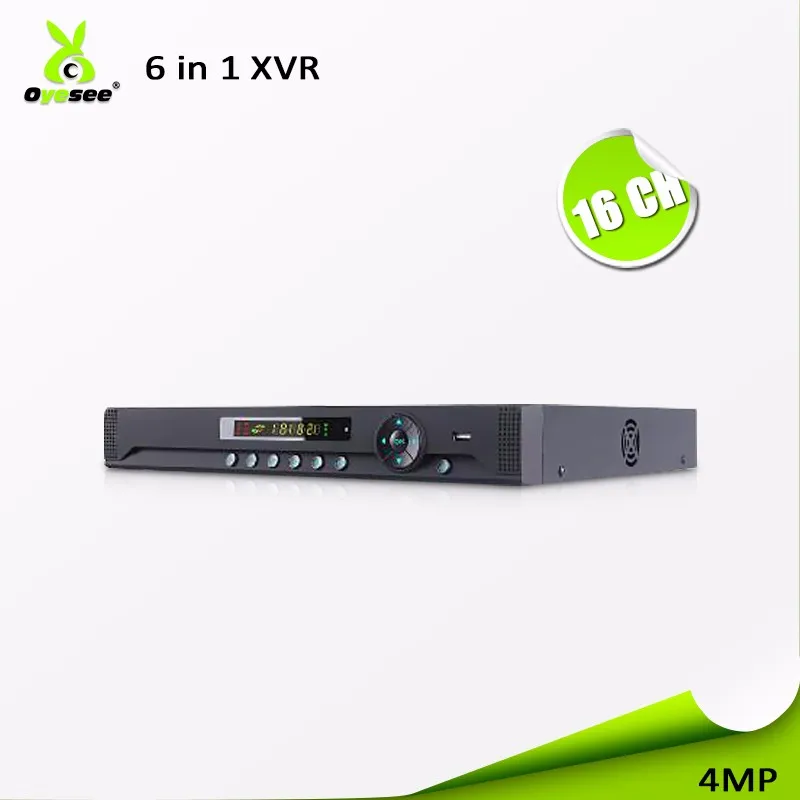

2018 Competitive price 4MP AHD 16 channel dvr cms download 2HDD p2p CVI XVI IP Analog 6 in 1 xmeye xvr for security cctv camera


Support VGA, HDMI full HD output simultaneously;

Support ONVIF; access third party;

Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;

Support web, CMS, center platform management software MYEYE, provide SDK development;

Support various mobile monitoring (iPhone, Android);

Remote Access, With DNS (ARSP),easy to monitor remotely

Support UTC, control signal& video stream transmit through one single coaxial

Support AHD/TVI/CVI/CVBS/IP/Analog six signals;

Technical parameter
Model
OYSX-T16MDA

System
Main
Hi3521A





Video
Codec
H.264
Monitor
VGA;HDMI
Preview  ability
16*4M@15fps(AHD)/ 16*3M@18fps(AHD)/16*1080P(5 in 1)
Encode   ability
16*4M@8fps(AHD)/ 16*3M@10fps(AHD)/16*1080P @15fps (5 in 1) / 16*720P(5 in 1)
Decode ability
8*4M@8fps(AHD)/ 8*3M@10fps(AHD)/8*1080P @15fps (5 in 1) / 8*720P(5 in 1)


Multi-mode  input
analog:16*4M;

hybrid: 8*4M(analog)+8*4M (network)

network:8*3M ;4*5M
Motion Detection
Each screen can be set to 192 (16 * 12) detection areas;
multi-level sensitivity can be set (Limited local channel)

Audio
Audio compression
G.711A
Intercom
support



Record
Record mode
manual>alarm>motion detection>timing
Search mode
Search by time, calendar, event, channel
Video storage
HDD, network
Backup mode
Network, USB hard disk, USB burner, SATA burner




External

Interface
Video input
16ch BNC
Video output
1ch VGA, 1ch HDMI
Audio I/O
6/1
Alarm I/O
0/0
Network interface
RJ45 10M/100M self-adaption
Extension interface
2* USB 2.0 ports(3G,WIFI can be extended);1*RS485;Support kinds of PTZ
HDD
2*SATA ports (Max 8TB/per)

General

Working environment
Temperature:0℃-+55℃,Humidity:10%-90%,Atm:86kpa-106kpa
Power supply
12v/3A
Packing& Shipping
Certifications

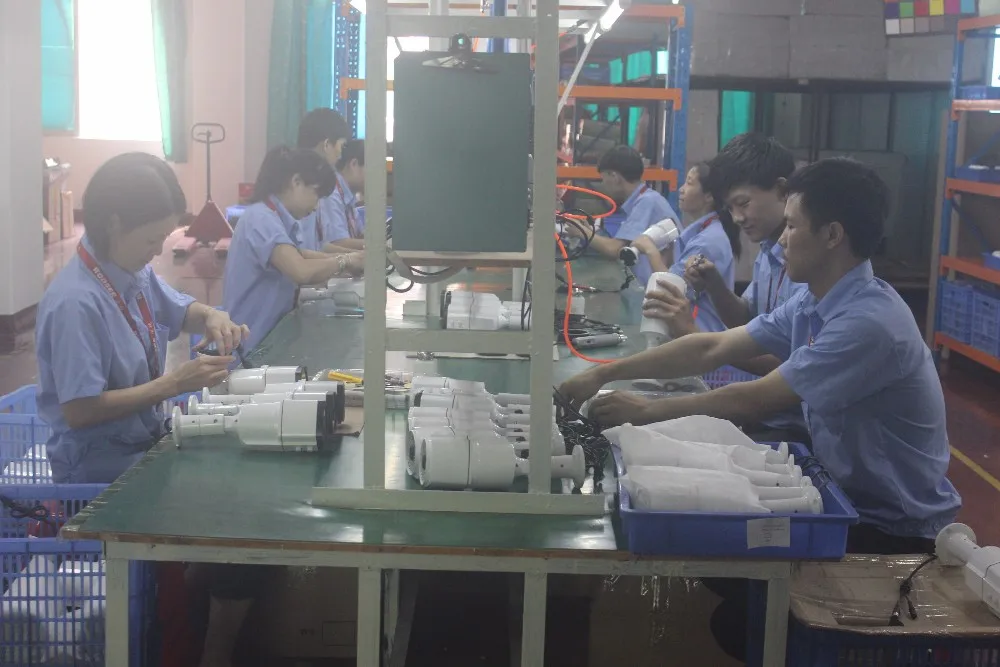

Production flow
Application
Our Service

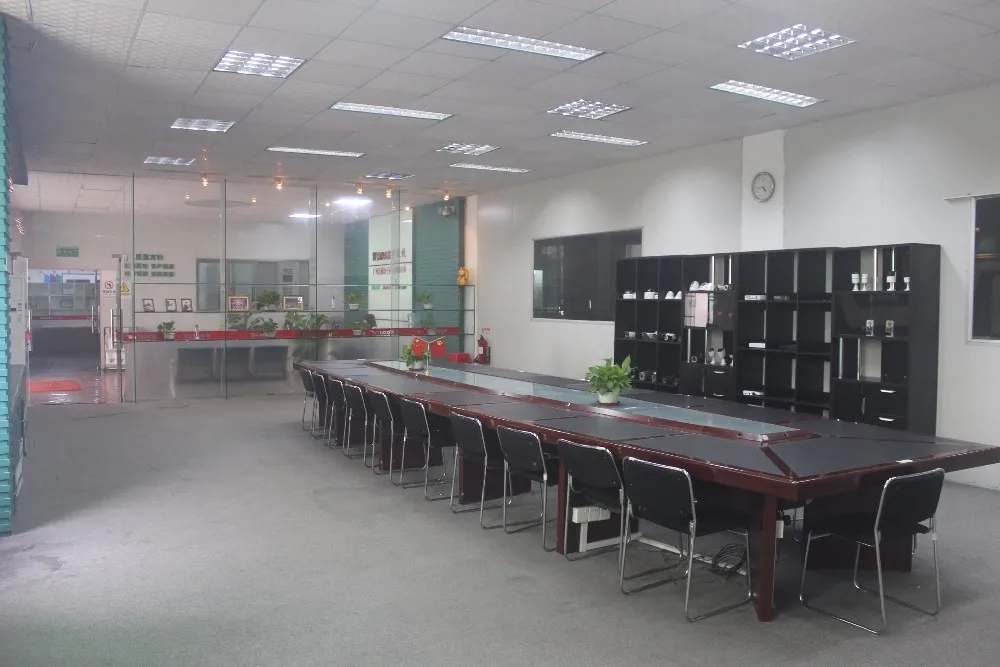

Our Company
OYESEE SECURITY LIMITED

 Established in 2014, is a high-tech enterprise specializing in the R&D, manufacturing and sales of various surveillance systems,Our main products includeHD IP camera, HD analog camera, Smart camera, hybrid camera, high speed camera, digital video recorder, network video recorder and so on, which are largely used in industries like financial institutions, public security, telecommunications, traffic transportation, judicature institutions, education, electricity, water conservancy and etc.

R&D

Located in Guangzhou, China, occupies an area of approximately 6000 square meters with about 300 sophisticated workers. With three brands, we rapidly developed with strategy of scale, diversification and internationalization at performance rate of 50% in last years. We have two R&D team, professional technicians overpass 50% of the whole. Every year we invest at least 10% of our sales income to research, development and innovation, which enables OYESEE to get kinds of independent intellectual property rights, stay in the leading place in the industry and guarantee excellent performance of our products.

Certificates

Was rated as "High-tech Enterprises", "China Security 100", "Safe City Construction Recommended Brand", "Member of China Security and Protection Industry Unit", and have built a long-term strategic partnership with GDPSPTA, Alibaba, Global Sources, Made in China, China public security Magazine. Besides, our products have successfully passed ISO9001:2000,CE, FCC, RoHS etc., which well assure a very stable and long-term cooperation with each customer.

Markets& service

In passed years, OYESEE products won great reputation among customers worldwide by meeting their needs, promoting new products at our best service and strong technology, especially in European countries such as Russia, Romania, Poland, Italy and etc. Replying on reasonable price, good quality, short lead-time and excellent service, over 90% customers re-buy from us after trial orders. And it is our honor defective rate of our products can be less than 0.1%.


OYESEE will keep providing good quality products and services with reasonable prices and short lead-time for customers around the world. We are sincerely seeking for a good business cooperation with you in a win-win way in this CCTV field. Let's start our cooperative partnership now!

FAQ

Q1.What kind of service can you provide?

A:1.Customized Order

2.Surveillance Solution

3.Home Security Solution

4.Hardware and software OEM/ODM service


Q2.How can I check the product quality?

A:1.We have online demo,please contact us,we will show you during our working time

2.You can buy a sample for quality test,sample time 3-5 days after payment confirmed

3.We have online store,we can sell single product to you,Online payment supported

4.We will attend some show at your local place at some time,please contact us for more details.


Q3.What is product warranty?

A: 2 years for cameras(LED for 1 year only)

1 year for recorders

1 year extended with OYESEE logo


Q4: What is the product certification?

A:Basically CE ROHS FCC for our products,ISO 9001 for our factory

Besides certification above,we are willing to provide samples for local testing to get the certification based on local law.


Q5:What if there is defective product?

A:Principle :"To decrease loss for both sides"

1.Remote Support first

2.if remote support can not work,

2-1.For small QTY, we will deduct the cost in the next order

2-2.For large QTY, we will accept return of items

2-3.If item return,to save the cost of shipping,we advise sending back parts that defective.

3.We are cooperative to help solving the problem even it is not our fault.

4.More details,please contact us


Q6: Time for production and delivery?

A:1.Sample 3-7 working days

2.Mass production 7-15 working days

3.Delivery time:Via Express delivery ,3-7 working days


Q7:if I want to order,what information should I provide?

A: information for invoice,

1.enterprise name or individual name

2.address with zip code

3.phone number

4.tax number needed specially for some areas
